Mobjects¶

class manim_extensions.compass.Compass(span=1.5, head_color=ManimColor('#FFFFFF'), niddle_color=ManimColor('#FC6255'), pen_color=ManimColor('#F7D96F'), stroke_width=2, leg_length=3.1, leg_width=0.12, r=0.2, **kwargs)[source]¶

Bases: VGroup

Compass mobject.

Example: CompassExample ¶

from manim import *

from manim_extensions.compass import Compass

class CompassExample(Scene):
    def construct(self):
        compass = Compass().to_edge(LEFT)
        self.add(compass)

from manim import *
from manim_extensions.compass import Compass

class CompassExample(Scene):
    def construct(self):
        compass = Compass().to_edge(LEFT)
        self.add(compass)

__init__(span=1.5, head_color=ManimColor('#FFFFFF'), niddle_color=ManimColor('#FC6255'), pen_color=ManimColor('#F7D96F'), stroke_width=2, leg_length=3.1, leg_width=0.12, r=0.2, **kwargs)[source]¶

get_niddle_tip()[source]¶

Return the coordinates of the needle tip.

Example: GetNiddleTipDocExample ¶

../../_images/GetNiddleTipDocExample-1.png

from manim import *
from manim_extensions.compass import Compass

class GetNiddleTipDocExample(Scene):
    def construct(self):
        compass = Compass().to_edge(LEFT)
        dot = Dot(compass.get_niddle_tip())
        self.add(compass, dot)

from manim import *
from manim_extensions.compass import Compass

class GetNiddleTipDocExample(Scene):
    def construct(self):
        compass = Compass().to_edge(LEFT)
        dot = Dot(compass.get_niddle_tip())
        self.add(compass, dot)

get_pen_tip()[source]¶

Return the coordinates of the pen tip.

Example: GetPenTipDocExample ¶

from manim import *
from manim_extensions.compass import Compass

class GetPenTipDocExample(Scene):
    def construct(self):
        compass = Compass().to_edge(LEFT)
        dot = Dot(compass.get_pen_tip())
        self.add(compass, dot)

from manim import *
from manim_extensions.compass import Compass

class GetPenTipDocExample(Scene):
    def construct(self):
        compass = Compass().to_edge(LEFT)
        dot = Dot(compass.get_pen_tip())
        self.add(compass, dot)

get_niddle2pen_vec()[source]¶

Return the vector from the needle tip to the pen tip.

Example: GetNiddle2PenVecDocExample ¶

../../_images/GetNiddle2PenVecDocExample-1.png

from manim import *
from manim_extensions.compass import Compass

class GetNiddle2PenVecDocExample(Scene):
    def construct(self):
        compass = Compass().to_edge(LEFT)
        v = compass.get_niddle2pen_vec()
        arrow = Arrow(compass.get_niddle_tip(), compass.get_niddle_tip() + v)
        self.add(compass, arrow)

from manim import *
from manim_extensions.compass import Compass

class GetNiddle2PenVecDocExample(Scene):
    def construct(self):
        compass = Compass().to_edge(LEFT)
        v = compass.get_niddle2pen_vec()
        arrow = Arrow(compass.get_niddle_tip(), compass.get_niddle_tip() + v)
        self.add(compass, arrow)

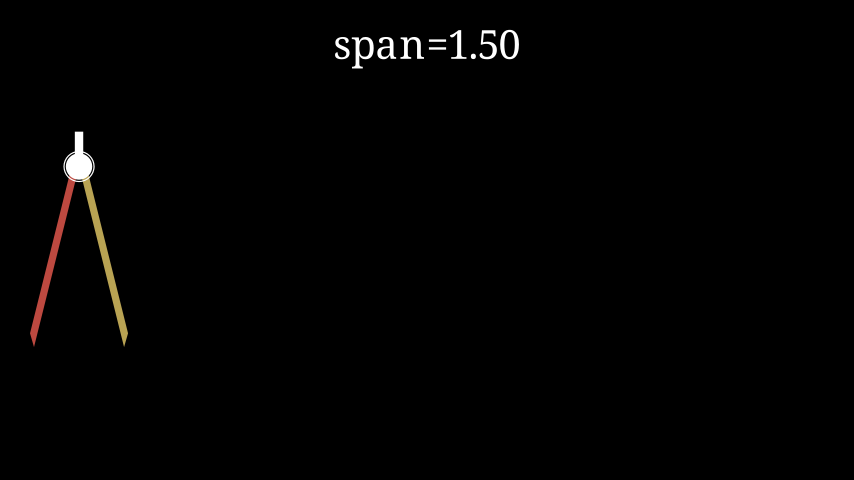

get_span()[source]¶

Return the compass span: distance between pen tip and needle tip.

Example: GetSpanDocExample ¶

from manim import *
from manim_extensions.compass import Compass

class GetSpanDocExample(Scene):
    def construct(self):
        compass = Compass().to_edge(LEFT)
        label = Text(f"span={compass.get_span():.2f}").to_edge(UP)
        self.add(compass, label)

from manim import *
from manim_extensions.compass import Compass

class GetSpanDocExample(Scene):
    def construct(self):
        compass = Compass().to_edge(LEFT)
        label = Text(f"span={compass.get_span():.2f}").to_edge(UP)
        self.add(compass, label)

move_niddle_tip_to(pos)[source]¶

Move the compass as a whole so that the needle tip is at pos.

Example: CompassMoveNiddleTipToDocExample ¶

../../_images/CompassMoveNiddleTipToDocExample-1.png

from manim import *
from manim_extensions.compass import Compass

class CompassMoveNiddleTipToDocExample(Scene):
    def construct(self):
        compass = Compass().move_niddle_tip_to(ORIGIN)
        self.add(compass)

from manim import *
from manim_extensions.compass import Compass

class CompassMoveNiddleTipToDocExample(Scene):
    def construct(self):
        compass = Compass().move_niddle_tip_to(ORIGIN)
        self.add(compass)

rotate_about_niddle_tip(angle=1.5707963267948966)[source]¶

Rotate the compass as a whole around the needle tip by angle.

Example: RotateAboutNiddleTipDocExample ¶

../../_images/RotateAboutNiddleTipDocExample-1.png

from manim import *
from manim_extensions.compass import Compass

class RotateAboutNiddleTipDocExample(Scene):
    def construct(self):
        compass = Compass().rotate_about_niddle_tip(PI / 4)
        self.add(compass)

from manim import *
from manim_extensions.compass import Compass

class RotateAboutNiddleTipDocExample(Scene):
    def construct(self):
        compass = Compass().rotate_about_niddle_tip(PI / 4)
        self.add(compass)

reverse_tip()[source]¶

Mirror-flip the needle tip and pen tip.

Example: ReverseTipDocExample ¶

../../_images/ReverseTipDocExample-1.png

from manim import *
from manim_extensions.compass import Compass

class ReverseTipDocExample(Scene):
    def construct(self):
        compass = Compass().reverse_tip()
        self.add(compass)

from manim import *
from manim_extensions.compass import Compass

class ReverseTipDocExample(Scene):
    def construct(self):
        compass = Compass().reverse_tip()
        self.add(compass)

split_copass_with_gain_angle(angle)[source]¶

Open the two compass legs by an additional angle.

Example: SplitCompassWithGainAngleDocExample ¶

../../_images/SplitCompassWithGainAngleDocExample-1.png

from manim import *
from manim_extensions.compass import Compass

class SplitCompassWithGainAngleDocExample(Scene):
    def construct(self):
        compass = Compass().split_copass_with_gain_angle(PI / 6)
        self.add(compass)

from manim import *
from manim_extensions.compass import Compass

class SplitCompassWithGainAngleDocExample(Scene):
    def construct(self):
        compass = Compass().split_copass_with_gain_angle(PI / 6)
        self.add(compass)

split_compass_with_niddle_tip_fixed(angle, niddle_tip_pos)[source]¶

Keep the needle tip fixed and open the two compass legs by angle.

Example: SplitCompassWithNiddleTipFixedDocExample ¶

../../_images/SplitCompassWithNiddleTipFixedDocExample-1.png

from manim import *
from manim_extensions.compass import Compass

class SplitCompassWithNiddleTipFixedDocExample(Scene):
    def construct(self):
        compass = Compass().split_compass_with_niddle_tip_fixed(PI / 6, ORIGIN)
        self.add(compass)

from manim import *
from manim_extensions.compass import Compass

class SplitCompassWithNiddleTipFixedDocExample(Scene):
    def construct(self):
        compass = Compass().split_compass_with_niddle_tip_fixed(PI / 6, ORIGIN)
        self.add(compass)

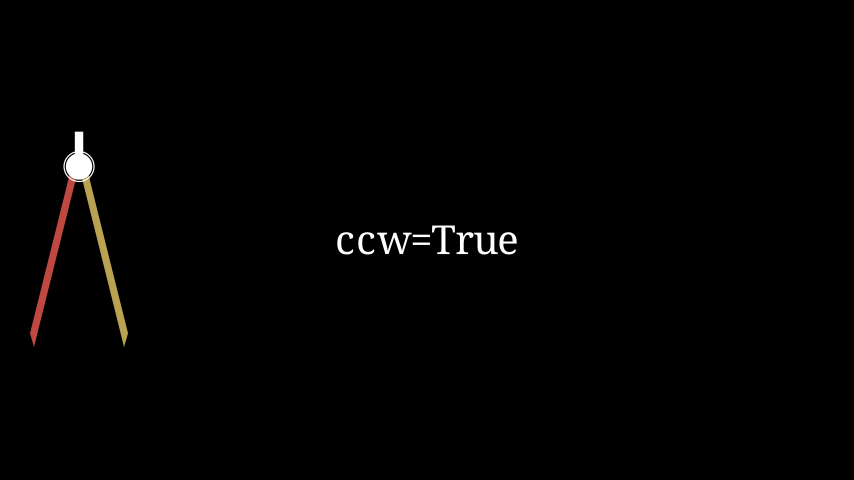

get_compass_rotate_angle_direction()[source]¶

Return whether the two compass legs are counter-clockwise from each other.

Example: GetCompassRotateAngleDirectionDocExample ¶

../../_images/GetCompassRotateAngleDirectionDocExample-1.png

from manim import *
from manim_extensions.compass import Compass

class GetCompassRotateAngleDirectionDocExample(Scene):
    def construct(self):
        compass = Compass().to_edge(LEFT)
        label = Text(f"ccw={compass.get_compass_rotate_angle_direction()}")
        self.add(compass, label)

from manim import *
from manim_extensions.compass import Compass

class GetCompassRotateAngleDirectionDocExample(Scene):
    def construct(self):
        compass = Compass().to_edge(LEFT)
        label = Text(f"ccw={compass.get_compass_rotate_angle_direction()}")
        self.add(compass, label)

Return type:: bool

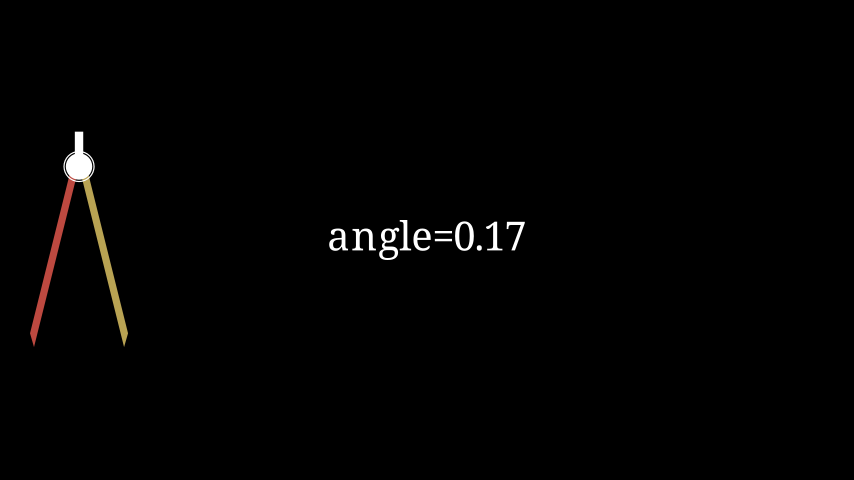

get_compass_rotate_angle_with_span(span)[source]¶

Return the angle between the two legs when the compass is opened to span.

Example: GetCompassRotateAngleWithSpanDocExample ¶

../../_images/GetCompassRotateAngleWithSpanDocExample-1.png

from manim import *
from manim_extensions.compass import Compass

class GetCompassRotateAngleWithSpanDocExample(Scene):
    def construct(self):
        compass = Compass().to_edge(LEFT)
        label = Text(f"angle={compass.get_compass_rotate_angle_with_span(2):.2f}")
        self.add(compass, label)

from manim import *
from manim_extensions.compass import Compass

class GetCompassRotateAngleWithSpanDocExample(Scene):
    def construct(self):
        compass = Compass().to_edge(LEFT)
        label = Text(f"angle={compass.get_compass_rotate_angle_with_span(2):.2f}")
        self.add(compass, label)

Return type:: float

set_compass(span_angle, rotate_angle, niddle_tip_pos)[source]¶

Set the compass span, rotation angle, and needle tip position.

Example: SetCompassDocExample ¶

../../_images/SetCompassDocExample-1.png

from manim import *
from manim_extensions.compass import Compass

class SetCompassDocExample(Scene):
    def construct(self):
        compass = Compass().set_compass(PI / 6, PI / 4, ORIGIN)
        self.add(compass)

from manim import *
from manim_extensions.compass import Compass

class SetCompassDocExample(Scene):
    def construct(self):
        compass = Compass().set_compass(PI / 6, PI / 4, ORIGIN)
        self.add(compass)

class manim_extensions.compass.Pencil(height=2, angle=0.7853981633974483)[source]¶

Bases: SVGMobject

Pencil mobject.

Example: PencilDocExample ¶

from manim import *
from manim_extensions.compass import Pencil

class PencilDocExample(Scene):
    def construct(self):
        pencil = Pencil().to_edge(LEFT)
        self.add(pencil)

from manim import *
from manim_extensions.compass import Pencil

class PencilDocExample(Scene):
    def construct(self):
        pencil = Pencil().to_edge(LEFT)
        self.add(pencil)

__init__(height=2, angle=0.7853981633974483)[source]¶

get_nib()[source]¶

Return the position of the nib.

Example: GetNibDocExample ¶

from manim import *
from manim_extensions.compass import Pencil

class GetNibDocExample(Scene):
    def construct(self):
        pencil = Pencil().to_edge(LEFT)
        dot = Dot(pencil.get_nib())
        self.add(pencil, dot)

from manim import *
from manim_extensions.compass import Pencil

class GetNibDocExample(Scene):
    def construct(self):
        pencil = Pencil().to_edge(LEFT)
        dot = Dot(pencil.get_nib())
        self.add(pencil, dot)

get_nid_vector()[source]¶

Return the direction of the pencil body.

Example: GetNidVectorDocExample ¶

../../_images/GetNidVectorDocExample-1.png

from manim import *
from manim_extensions.compass import Pencil

class GetNidVectorDocExample(Scene):
    def construct(self):
        pencil = Pencil().to_edge(LEFT)
        v = pencil.get_nid_vector()
        arrow = Arrow(pencil.get_nib(), pencil.get_nib() + v)
        self.add(pencil, arrow)

from manim import *
from manim_extensions.compass import Pencil

class GetNidVectorDocExample(Scene):
    def construct(self):
        pencil = Pencil().to_edge(LEFT)
        v = pencil.get_nid_vector()
        arrow = Arrow(pencil.get_nib(), pencil.get_nib() + v)
        self.add(pencil, arrow)

move_nid_to(point=array([0., 0., 0.]))[source]¶

Translate the pencil so that the nib moves to point.

Example: MoveNidToDocExample ¶

from manim import *
from manim_extensions.compass import Pencil

class MoveNidToDocExample(Scene):
    def construct(self):
        pencil = Pencil().move_nid_to(ORIGIN)
        self.add(pencil)

from manim import *
from manim_extensions.compass import Pencil

class MoveNidToDocExample(Scene):
    def construct(self):
        pencil = Pencil().move_nid_to(ORIGIN)
        self.add(pencil)

class manim_extensions.compass.Ruler(length=12, width=0.8, ruler_color=ManimColor('#FFFFFF'), stroke_width=2, fill_opacity=0.4, **kwargs)[source]¶

Bases: VGroup

Ruler mobject.

Example: RulerExample ¶

from manim import *

from manim_extensions.compass import Ruler

class RulerExample(Scene):
    def construct(self):
        ruler = Ruler()
        self.add(ruler)

from manim import *
from manim_extensions.compass import Ruler

class RulerExample(Scene):
    def construct(self):
        ruler = Ruler()
        self.add(ruler)

__init__(length=12, width=0.8, ruler_color=ManimColor('#FFFFFF'), stroke_width=2, fill_opacity=0.4, **kwargs)[source]¶

get_vecs_of_ruler()[source]¶

Return the extension and width directions of the ruler.

Example: GetVecsOfRulerDocExample ¶

../../_images/GetVecsOfRulerDocExample-1.png

from manim import *
from manim_extensions.compass import Ruler

class GetVecsOfRulerDocExample(Scene):
    def construct(self):
        ruler = Ruler().to_edge(LEFT)
        u, v = ruler.get_vecs_of_ruler()
        center = ruler.get_middle_point()
        self.add(ruler, Arrow(center, center + u), Arrow(center, center + v))

from manim import *
from manim_extensions.compass import Ruler

class GetVecsOfRulerDocExample(Scene):
    def construct(self):
        ruler = Ruler().to_edge(LEFT)
        u, v = ruler.get_vecs_of_ruler()
        center = ruler.get_middle_point()
        self.add(ruler, Arrow(center, center + u), Arrow(center, center + v))

get_direction_vector_of_ruler()[source]¶

Return the extension direction of the ruler.

Example: GetDirectionVectorOfRulerDocExample ¶

../../_images/GetDirectionVectorOfRulerDocExample-1.png

from manim import *
from manim_extensions.compass import Ruler

class GetDirectionVectorOfRulerDocExample(Scene):
    def construct(self):
        ruler = Ruler().to_edge(LEFT)
        v = ruler.get_direction_vector_of_ruler()
        center = ruler.get_middle_point()
        self.add(ruler, Arrow(center, center + v))

from manim import *
from manim_extensions.compass import Ruler

class GetDirectionVectorOfRulerDocExample(Scene):
    def construct(self):
        ruler = Ruler().to_edge(LEFT)
        v = ruler.get_direction_vector_of_ruler()
        center = ruler.get_middle_point()
        self.add(ruler, Arrow(center, center + v))

get_width_vector_of_ruler()[source]¶

Return the width direction of the ruler.

Example: GetWidthVectorOfRulerDocExample ¶

../../_images/GetWidthVectorOfRulerDocExample-1.png

from manim import *
from manim_extensions.compass import Ruler

class GetWidthVectorOfRulerDocExample(Scene):
    def construct(self):
        ruler = Ruler().to_edge(LEFT)
        v = ruler.get_width_vector_of_ruler()
        center = ruler.get_middle_point()
        self.add(ruler, Arrow(center, center + v))

from manim import *
from manim_extensions.compass import Ruler

class GetWidthVectorOfRulerDocExample(Scene):
    def construct(self):
        ruler = Ruler().to_edge(LEFT)
        v = ruler.get_width_vector_of_ruler()
        center = ruler.get_middle_point()
        self.add(ruler, Arrow(center, center + v))

get_start_and_end()[source]¶

Return the start and end points of the ruler.

Example: GetStartAndEndDocExample ¶

../../_images/GetStartAndEndDocExample-1.png

from manim import *
from manim_extensions.compass import Ruler

class GetStartAndEndDocExample(Scene):
    def construct(self):
        ruler = Ruler().to_edge(LEFT)
        start, end = ruler.get_start_and_end()
        self.add(ruler, Dot(start), Dot(end))

from manim import *
from manim_extensions.compass import Ruler

class GetStartAndEndDocExample(Scene):
    def construct(self):
        ruler = Ruler().to_edge(LEFT)
        start, end = ruler.get_start_and_end()
        self.add(ruler, Dot(start), Dot(end))

get_middle_point()[source]¶

Return the midpoint of the ruler.

Example: GetMiddlePointDocExample ¶

../../_images/GetMiddlePointDocExample-1.png

from manim import *
from manim_extensions.compass import Ruler

class GetMiddlePointDocExample(Scene):
    def construct(self):
        ruler = Ruler().to_edge(LEFT)
        self.add(ruler, Dot(ruler.get_middle_point()))

from manim import *
from manim_extensions.compass import Ruler

class GetMiddlePointDocExample(Scene):
    def construct(self):
        ruler = Ruler().to_edge(LEFT)
        self.add(ruler, Dot(ruler.get_middle_point()))

get_length_of_ruler()[source]¶

Return the length of the ruler.

Example: GetLengthOfRulerDocExample ¶

../../_images/GetLengthOfRulerDocExample-1.png

from manim import *
from manim_extensions.compass import Ruler

class GetLengthOfRulerDocExample(Scene):
    def construct(self):
        ruler = Ruler().to_edge(LEFT)
        label = Text(f"length={ruler.get_length_of_ruler():.2f}").to_edge(UP)
        self.add(ruler, label)

from manim import *
from manim_extensions.compass import Ruler

class GetLengthOfRulerDocExample(Scene):
    def construct(self):
        ruler = Ruler().to_edge(LEFT)
        label = Text(f"length={ruler.get_length_of_ruler():.2f}").to_edge(UP)
        self.add(ruler, label)

set_ruler(start=array([-1., 0., 0.]), end=array([1., 0., 0.]))[source]¶

Place the ruler so that one of its edges aligns with start and end.

Parameters:

start – start point of the ruler placement
end – end point of the ruler placement
manim: (..) –
SetRulerDocExample: :save_last_frame:

from manim import * from manim_extensions.compass import Ruler

class SetRulerDocExample(Scene):

def construct(self):
ruler = Ruler().set_ruler(LEFT, RIGHT) self.add(ruler)

put_ruler_flat()[source]¶

Lay the ruler flat.

Example: PutRulerFlatDocExample ¶

../../_images/PutRulerFlatDocExample-1.png

from manim import *
from manim_extensions.compass import Ruler

class PutRulerFlatDocExample(Scene):
    def construct(self):
        ruler = Ruler().put_ruler_flat()
        self.add(ruler)

from manim import *
from manim_extensions.compass import Ruler

class PutRulerFlatDocExample(Scene):
    def construct(self):
        ruler = Ruler().put_ruler_flat()
        self.add(ruler)
